UPDATED X-FRAME DESIGN
X-Frame
Bakery Rack
An SS304 stainless steel bakery trolley with 2 mm shelf / tray runners, X-shaped bracing and an upgraded caster connection for everyday tray handling.
The new design uses plate-mounted casters, each secured with four bolts, replacing the stem-mounted casters of the previous X rack. The change is designed to provide a more secure connection between each caster and the frame.
- Caster attachment
- Four-bolt plate mounting
- Drawing dimensions
- 1780 × 680 × 517 mm
PRODUCT DETAILS
X-frame construction. Updated caster mounting.
The open frame and parallel runners support tray handling in bakery workflows. X-shaped braces connect the frame, while the mobile base allows the rack to move between work areas. Match tray dimensions and loaded product height to the runner layout before ordering.
For a custom stainless steel rack, send your required dimensions, tray layout and loading conditions. If you need a custom oven rack, also provide the oven interface and operating temperature so material, wheels and fit can be reviewed.
DESIGN UPDATE
Previous X rack vs. new X rack
View previous X-frame bakery rack ↗The new X rack combines four-bolt caster mounting with 2 mm shelf / tray runners in SS304. The previous model uses SS201 stainless steel with 1.5 mm shelf / tray runners. Load-bearing casters increase from 4 inches to 5 inches in diameter.

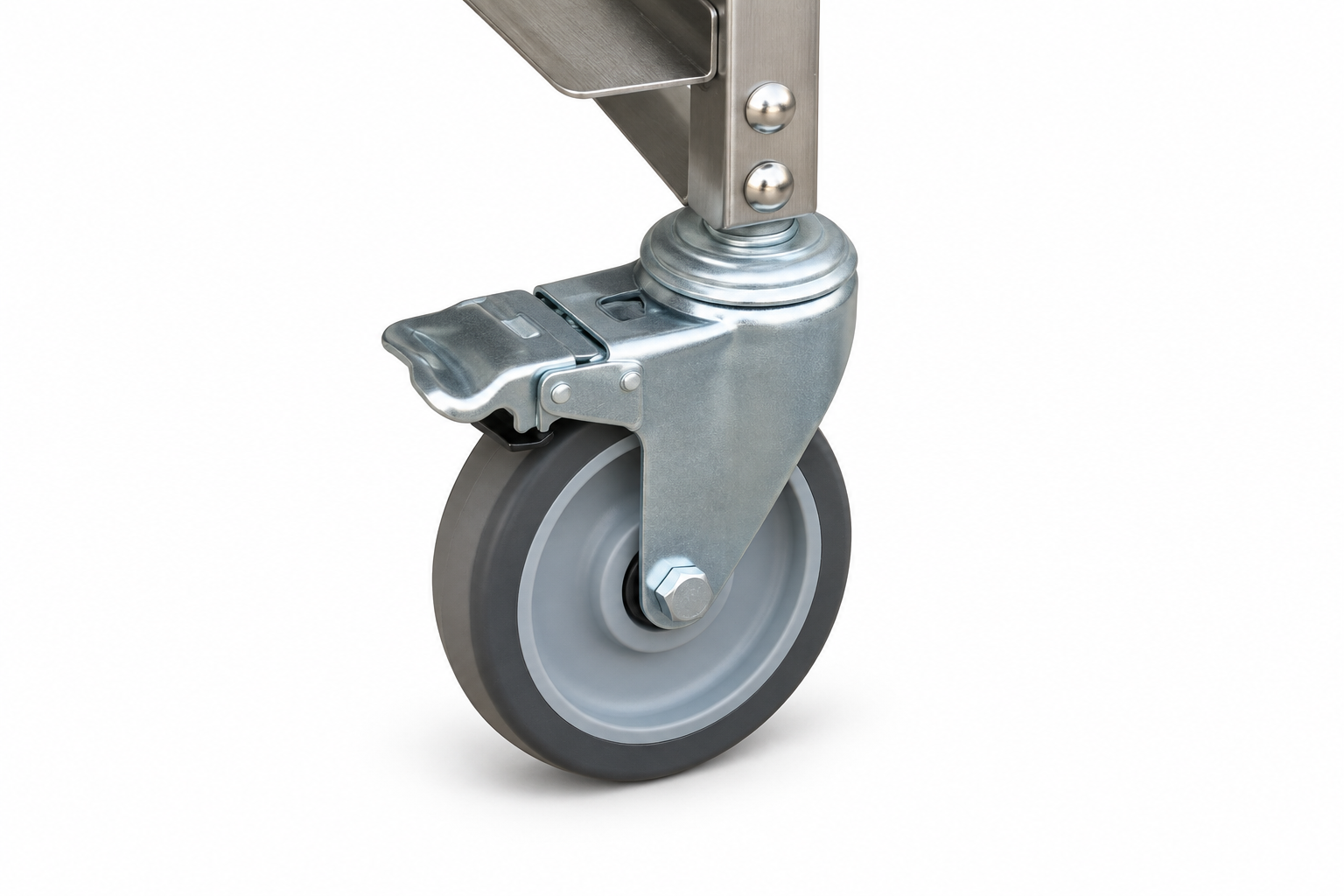

The caster stem inserts into the rack leg.

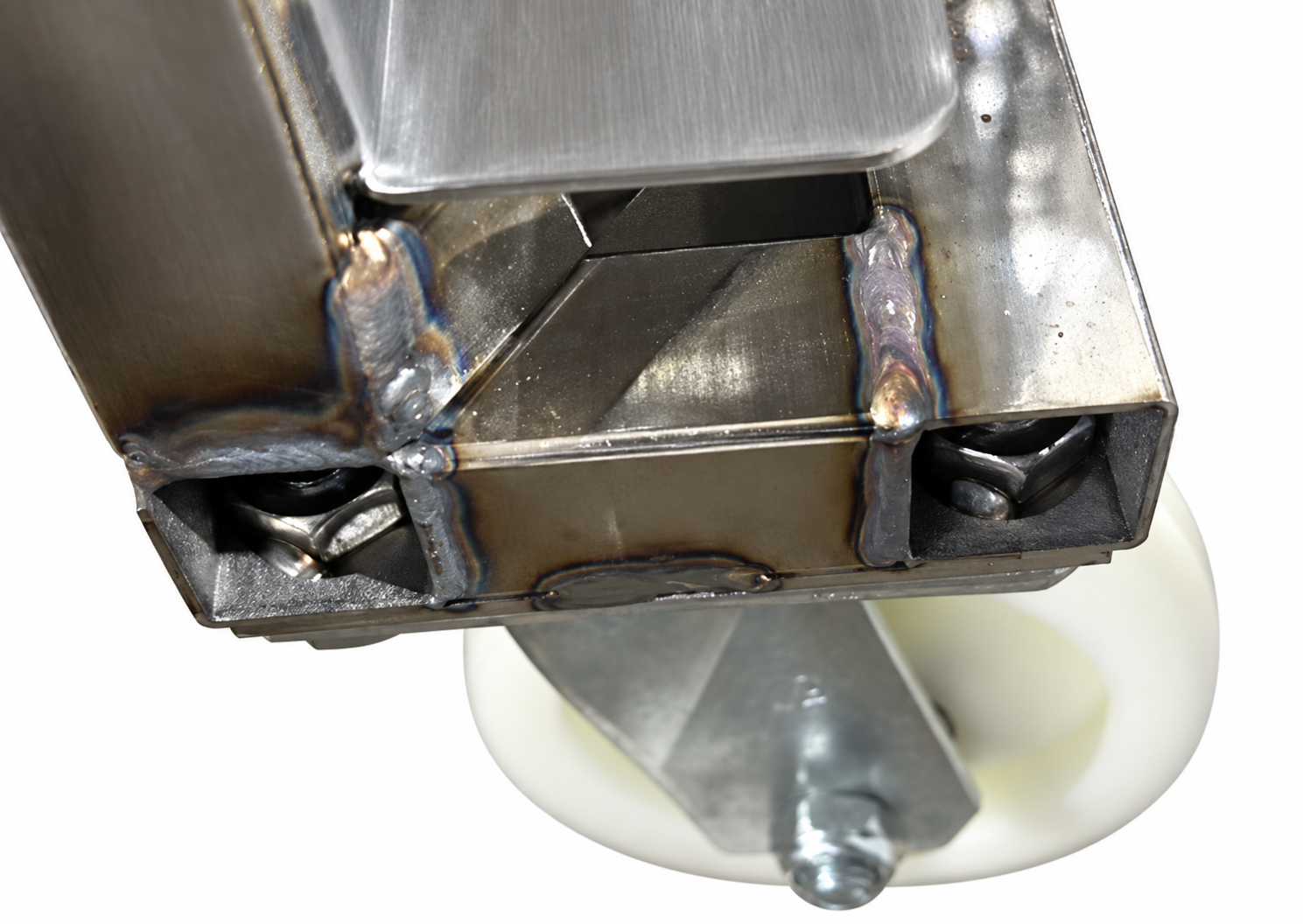

Each mounting plate is secured with four bolts, as specified for the new model.
Swipe the table sideways to see all columns.
| Feature | Previous X rack | New X rack |
|---|---|---|
| Mounting method | Inserted stem | Flat mounting plate |
| Frame connection | Stem fitted into the rack leg | Four bolts securing each caster plate |
| Load-bearing caster diameter | 4 inches (101.6 mm) | 5 inches (127 mm) |
| Shelf / tray runner thickness | 1.5 mm | 2 mm |
| Stainless steel grade | SS201 | SS304 |
| Upgrade objective | Previous mounting arrangement | A more secure attachment, intended to improve durability during daily handling |

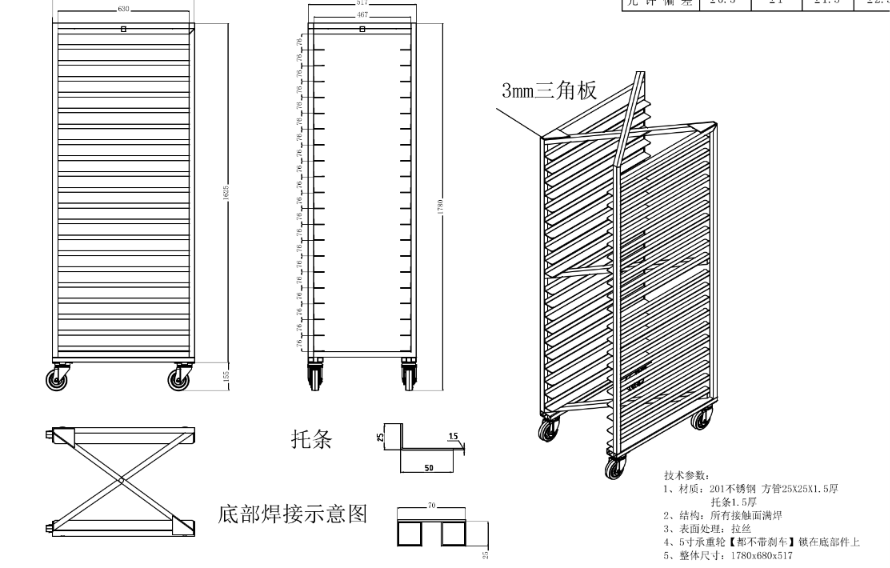

DRAWING REFERENCE
Product specifications
| Product type | X-frame bakery rack |
|---|---|
| Material | 304 stainless steel (SS304) |
| Drawing dimensions | 1780 × 680 × 517 mm |
| Overall height | 1780 mm |
| Horizontal dimensions | 680 × 517 mm; width/depth designation to be confirmed |
| Frame tube | 25 × 25 × 1.5 mm |
| Shelf / tray runner thickness | 2 mm |
| Triangular reinforcement plate | 3 mm |
| Load-bearing caster diameter | 5 inches (127 mm) |
| Caster mounting | Plate-mounted, four bolts per caster |
| Load capacity / temperature suitability | Confirm for the selected application |
BUYER QUESTIONS
Choosing your X rack
What changed from the previous X rack?
The caster mounting changed from an inserted stem to a plate secured with four bolts per caster. Shelf / tray runner thickness increases from 1.5 mm to 2 mm, load-bearing casters increase from 4 inches to 5 inches, and the material changes from SS201 to SS304 stainless steel. The upgrade focuses on a more secure frame connection and improved durability in daily handling.
Can I request a custom stainless steel rack?
Send your tray size, required rack dimensions, usable levels, material preference and order quantity. We will review the proposed configuration before quotation.
Is this rack suitable for use inside an oven?
Oven suitability must be confirmed for the selected configuration. Include the oven model, temperature and interface drawing in a custom oven rack inquiry; do not assume the pictured wheels are suitable for heat exposure.
