8 CAVITIES · PTFE (TEFLON)

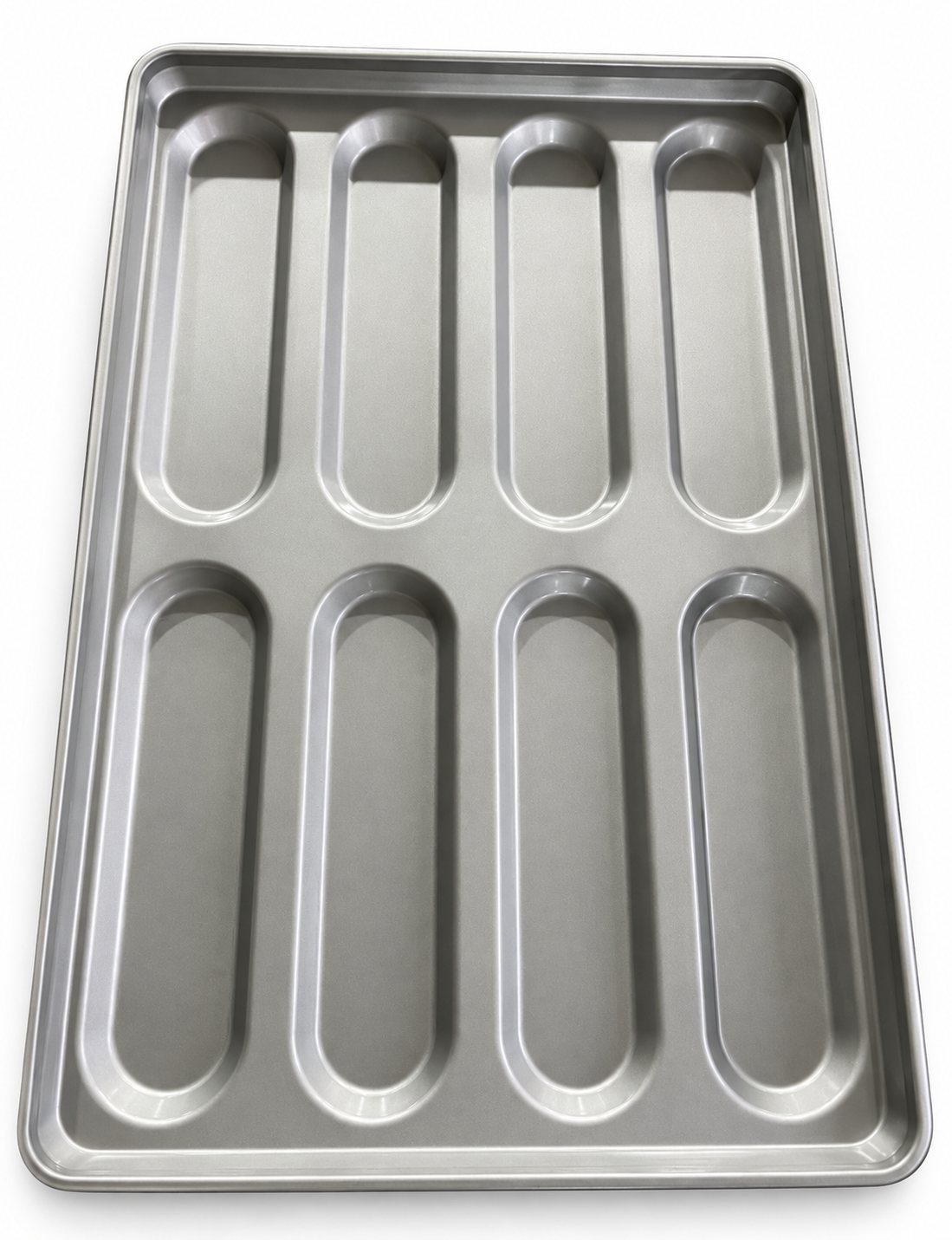

8-Cavity Hot Dog Bun Pan
600 × 400 mm
Cavity: 242 × 75 mm
Home / Commercial Bakeware / Hot Dog Bun Pans
COMMERCIAL BREAD ROLL PANS
Hot dog bun pans
& hoagie roll trays.
As a hot dog bun pan manufacturer, China Bakeware offers five aluminized steel configurations for commercial bakeries. Compare cavity size, tray footprint and coating for hot dog buns and hoagie rolls, or explore our separate perforated aluminum sub roll range.
Find the right mold for your roll.
8, 15, 21 and 32 cavities.
Custom sizes supported.
32 CAVITIES · PTFE (TEFLON)

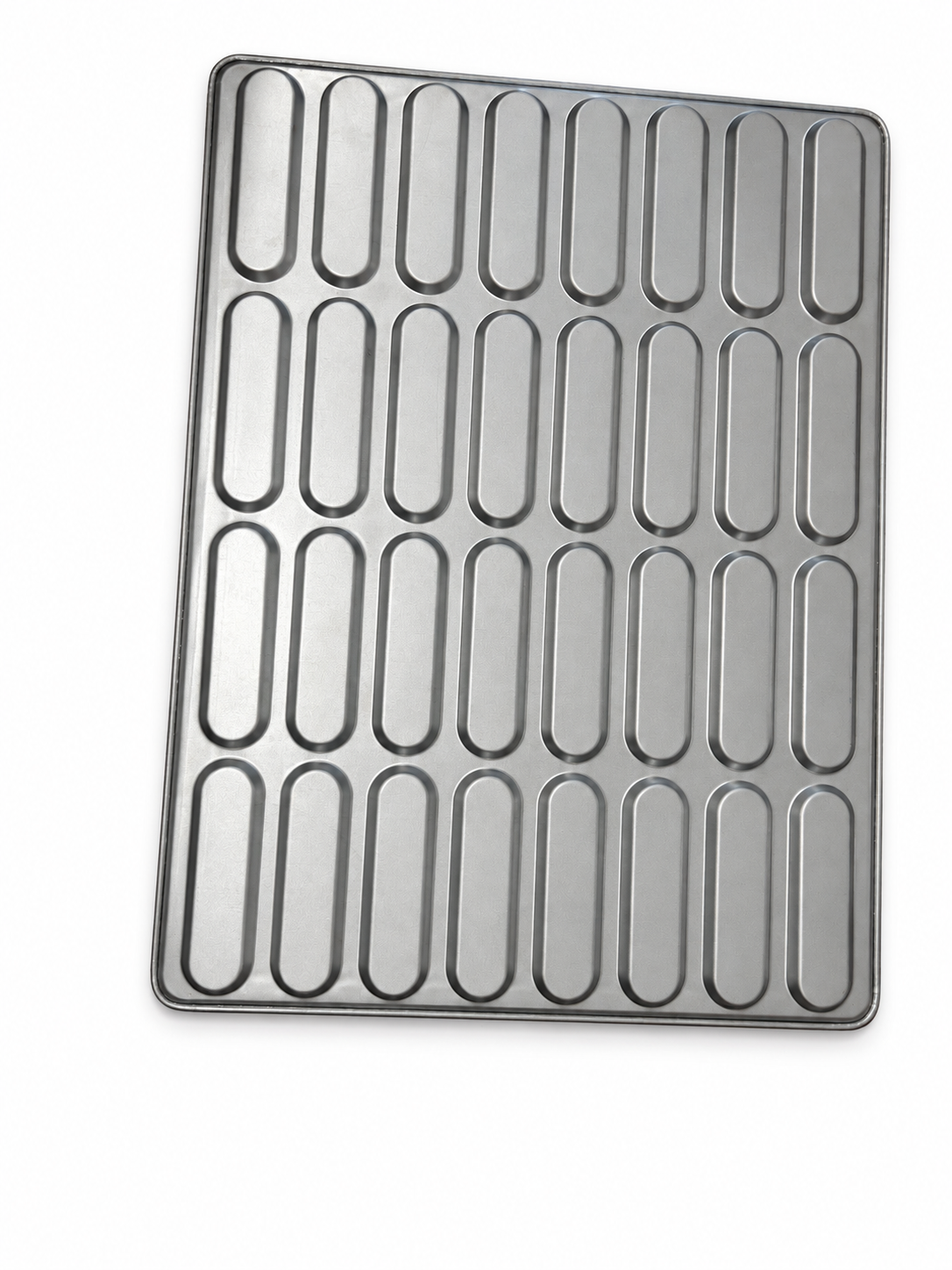

32-Cavity Hoagie Bun Pan
600 × 800 mm
Cavity: 185 × 55 mm
21 CAVITIES · SILICONE GLAZED

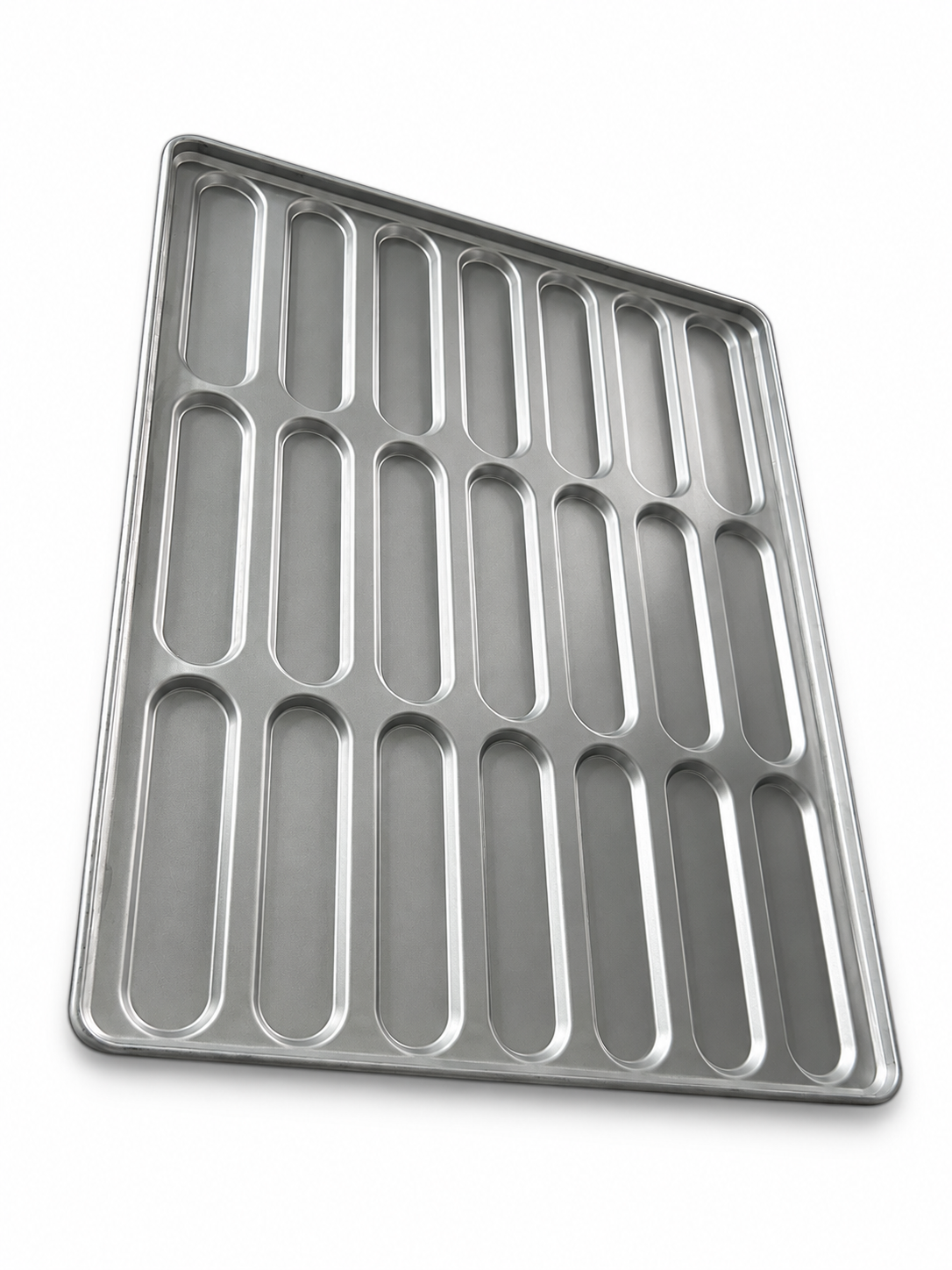

9.8-Inch Bread Roll Pan — 21 Cavities
600 × 800 mm
Cavity: 250 × 60 mm
15 CAVITIES · SILICONE GLAZED

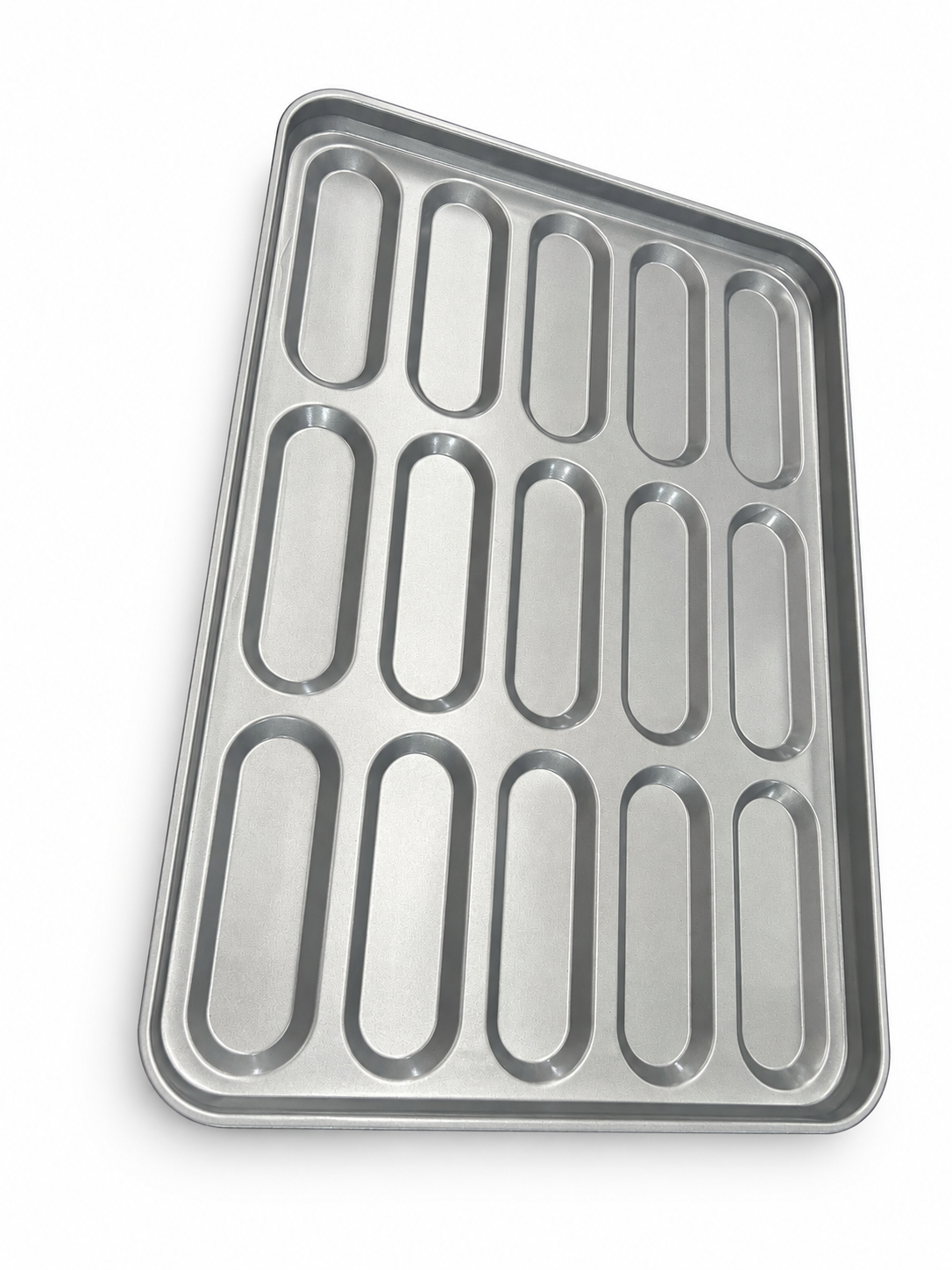

8-Inch Hoagie Roll Pan — Flat Bottom
18 × 26 inches
Cavity: 198 × 68 × 47.8 mm
15 CAVITIES · PTFE (TEFLON)

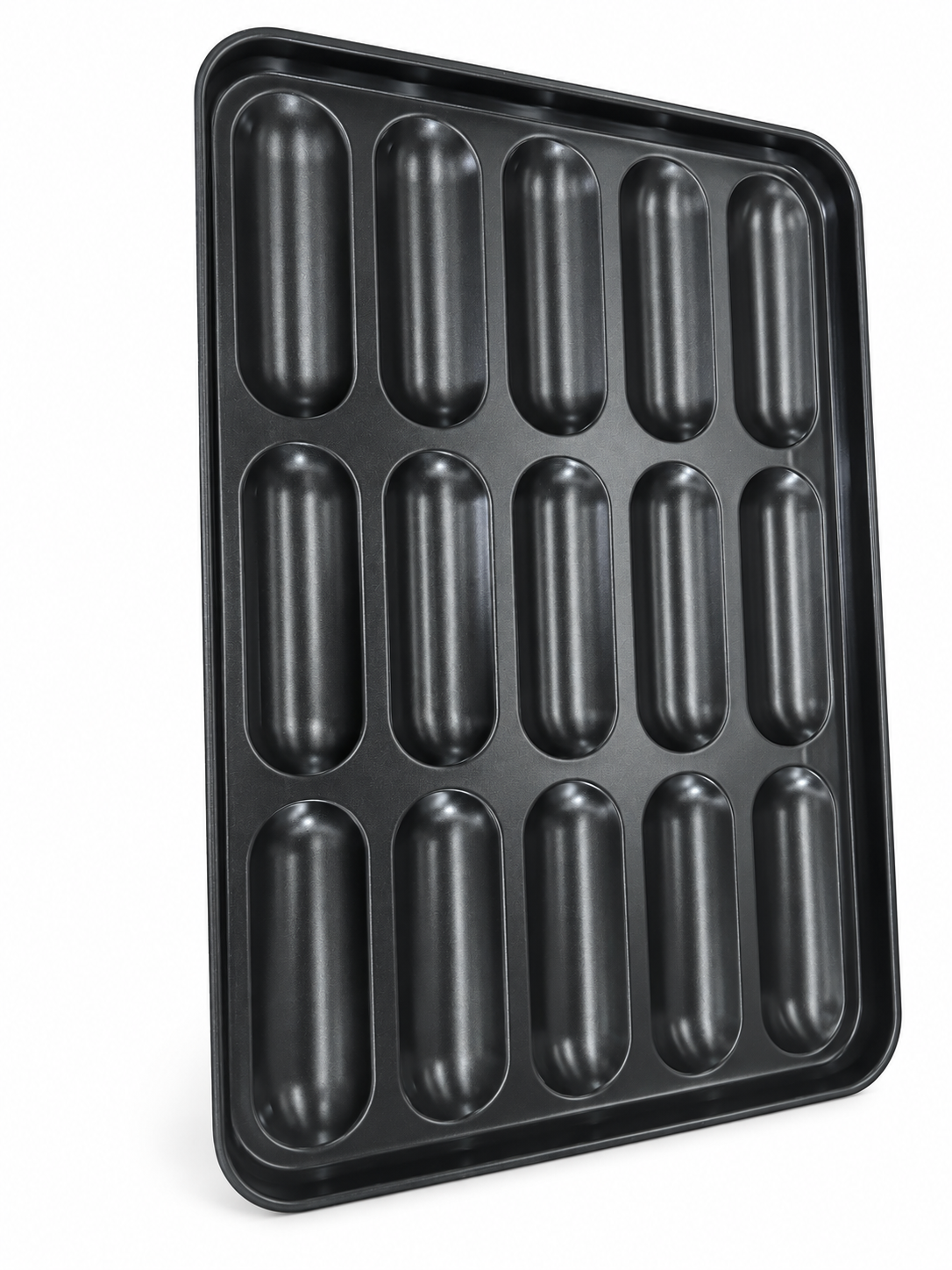

8-Inch Bread Bun Pan — Round Bottom
18 × 26 inches
Cavity: 198 × 68 × 47.8 mm
HOT DOG BUN TRAY SPECIFICATIONS
Compare cavity size and outside dimensions.
All five models use aluminized steel. Coatings vary by model.
Swipe the table sideways to see all columns.
| Model | Overall size | Cavity size | Layout / cavities | Coating |
|---|---|---|---|---|
| 8-Cavity Hot Dog Bun Pan | 600 × 400 mm | 242 × 75 mm | 2 × 4 / 8 | PTFE (Teflon) |
| 32-Cavity Hoagie Bun Pan | 600 × 800 mm | 185 × 55 mm | 4 × 8 / 32 | PTFE (Teflon) |
| 9.8-Inch Bread Roll Pan — 21 Cavities | 600 × 800 mm | 250 × 60 mm | 3 × 7 / 21 | Silicone glazed |
| 8-Inch Hoagie Roll Pan — Flat Bottom | 18 × 26 inches | 198 × 68 × 47.8 mm | 3 × 5 / 15 | Silicone glazed |
| 8-Inch Bread Bun Pan — Round Bottom | 18 × 26 inches | 198 × 68 × 47.8 mm | 3 × 5 / 15 | PTFE (Teflon) |
CHOOSING HOT DOG BUN PANS FOR BAKING
Start with the roll profile, then the pan.
Cavity geometry
A hot dog bread mold or sandwich roll mold supports the dough in an individual cavity. Compare cavity length, width, depth and base profile. The two 15-cavity models share listed dimensions, but one has a flat base and the other a rounded base.
Production fit
Choose a commercial hot dog bun pan by the complete outside dimensions and your oven or rack clearances. Check mold spacing and rim construction for your handling process. A larger cavity count does not by itself establish production compatibility.
COATING & MATERIAL
Aluminized steel, with a model-specific finish.
The aluminized steel hot dog bun pan range includes PTFE (Teflon) and silicone glazed finishes. The glaze is a coating on a metal pan. Send your dough formulation, baking conditions and cleaning method when discussing the finish.
Read the baking pan coating guideRELATED SUB ROLL BAKING PAN RANGE
Need perforated aluminum compartments?
Our separate sub sandwich roll pan range includes 7-, 8- and 12-inch compartment lengths with a glazed finish. Compare that perforated design with the individual molded cavities listed here.
CUSTOM HOAGIE BUN TRAY & HOT DOG BUN BAKING TRAY
Send the dimensions your bakery needs.
Include outside pan dimensions, cavity length, width and depth, cavity count, base profile, coating and quantity. Add your drawing or an existing pan reference for review.
Email your requirements
